Gang-tooled and production lathes.

A turret spends one to three seconds indexing between every tool. On a thirty-second part running fifty thousand pieces, that is weeks of spindle time. Gang tooling puts every tool on a slide that is already moving, so the next tool arrives as the slide travels — no index at all.

For short, high-volume work it is simply the faster architecture. LOMA supplies two gang-tooled lathes and a gantry-loaded production turning center, the last built in Japan by Hasegawa.

52-GTSDual gang

Twin opposed 15 HP spindles, two parallel gang slides

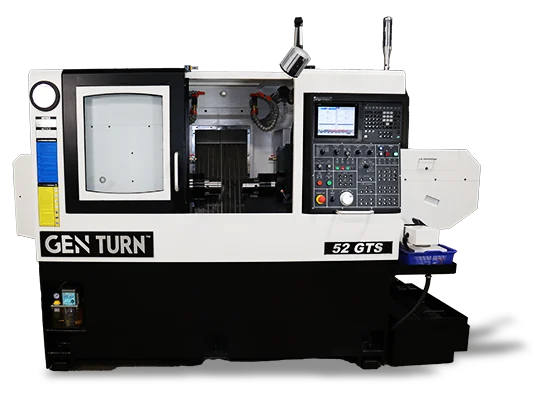

GenTurn 52-GTS 6-axis dual gang-tooled lathe with twin opposed spindles
GenTurn 52-GTS
Expand Machinery · machine video

Two gang-tooled cross-slides working against twin opposed 6,000 RPM spindles, with a C axis on both for live tooling. Simultaneous main and sub-spindle machining with no turret on either end — faster than a twin-spindle twin-turret lathe on the work it suits. Spindle oil cooler included.

Bar capacity
2.047″ · 52 mm
Spindles
Twin 6,000 RPM · 15 HP
Slides
Dual parallel gang, 13″ X
Coolant
83 gal with flow monitor
Rapids
1,181 ipm
Weight
9,922 lb

32-GT

2 or 3-axis gang-tooled lathe on box ways

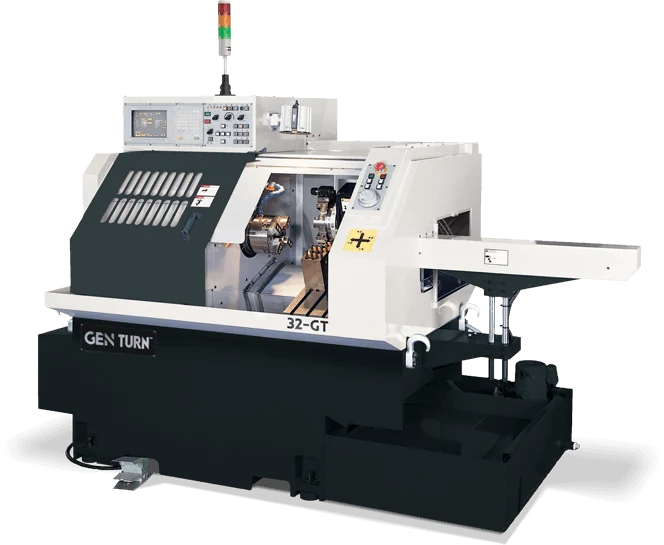

GenTurn 32-GT gang-tooled CNC lathe with box ways
GenTurn 32-GT
Expand Machinery · machine video

A 20° slant bed with Turcite-coated, pressure-lubricated box ways, a 6,000 RPM A2-5 spindle at 7.5 HP, and a 8.66 × 36.45″ tool plate with three T-slots. Positioning accuracy ±0.00015″. Live tooling and an 8-station turret are available if a job needs them.

Bar capacity
1.25″ · 32 mm
Spindle
6,000 RPM A2-5 · 7.5 HP
Turning dia.
7.87″ max
Ways
Box ways, 20° slant
Rapids
787 ipm
Weight
4,850 lb

C24 GMade in Japan

5C collet chuck with a built-in gantry loader

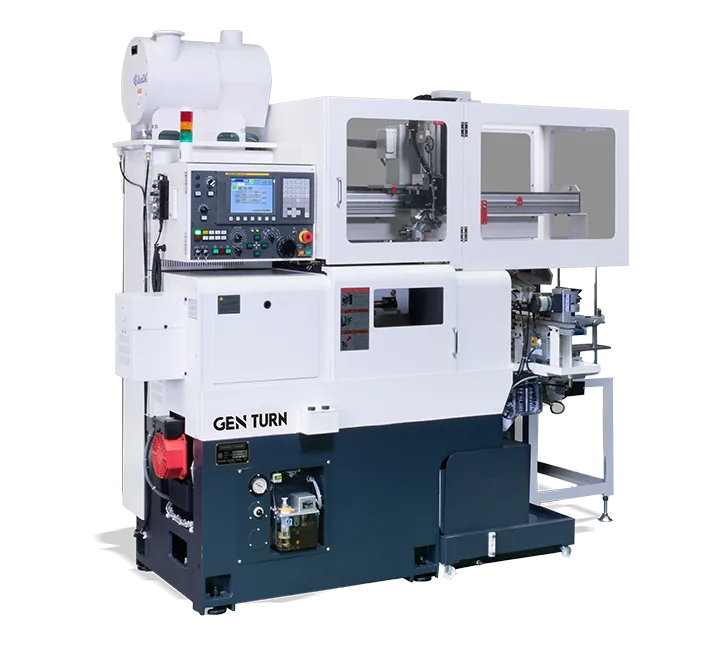

C24 G — 5C collet chuck with a built-in gantry loader
GenTurn C24 G
Expand Machinery · machine video

A production turning center with the automation built in: a two or three-axis gantry loader with a twelve-station rotary stacking magazine and lifter, handling workpieces from 3/8″ to 3.15″ diameter. An 8-station hydraulic turret indexes in 0.8 seconds. Built for high-production fasteners and small turned parts running unattended, with optional bowl feeders. Made in Japan by Hasegawa.

Bar capacity
1.00″ · 25 mm
Chuck
5C collet · 5″ max
Spindle
6,000 RPM A2-4 · 7 HP
Turret
8-station · 0.8 s index
Loader
12-station magazine
Weight
3,087 lb
Questions

Worth asking before you buy.

When is gang tooling faster than a turret?
On short-cycle, high-volume parts where index time is a meaningful share of the cycle. A turret takes one to three seconds to index; a gang slide takes none, because the next tool arrives as the slide is already travelling. On a thirty-second part at fifty thousand pieces a year, eliminating two seconds of indexing per tool change returns weeks of spindle time. On long-cycle or heavily-tooled parts a turret usually wins, because a gang plate holds fewer tools.
How many tools can a gang plate hold?
Fewer than a turret, which is the trade. The 32-GT carries a 8.66 x 36.45 inch tool plate with three T-slots on 63 mm centers, taking 20 mm square-shank turning tools and 32 mm internal tooling. The 52-GTS runs two gang slides, one per spindle, each with five T-slots. If a part needs more tools than a plate holds, a turret machine is the better answer.
Can gang-tooled machines do live tooling?
Yes. The 52-GTS has a C axis on both spindles for driven tooling, and the 32-GT offers optional driven tools with a 2:1 speed reduction for torque, using ER20 collets in a hydraulically positioned upper/lower format.
What is the C24 G for?
High-production small turned parts and fasteners, running without an operator. The gantry loader is built into the machine with a twelve-station rotary stacking magazine, so parts load and unload continuously. Bowl feeders are available. It is built in Japan by Hasegawa Machine Works.
