Machine + robot package
GEN MILL 5X-12 with Robot Cell

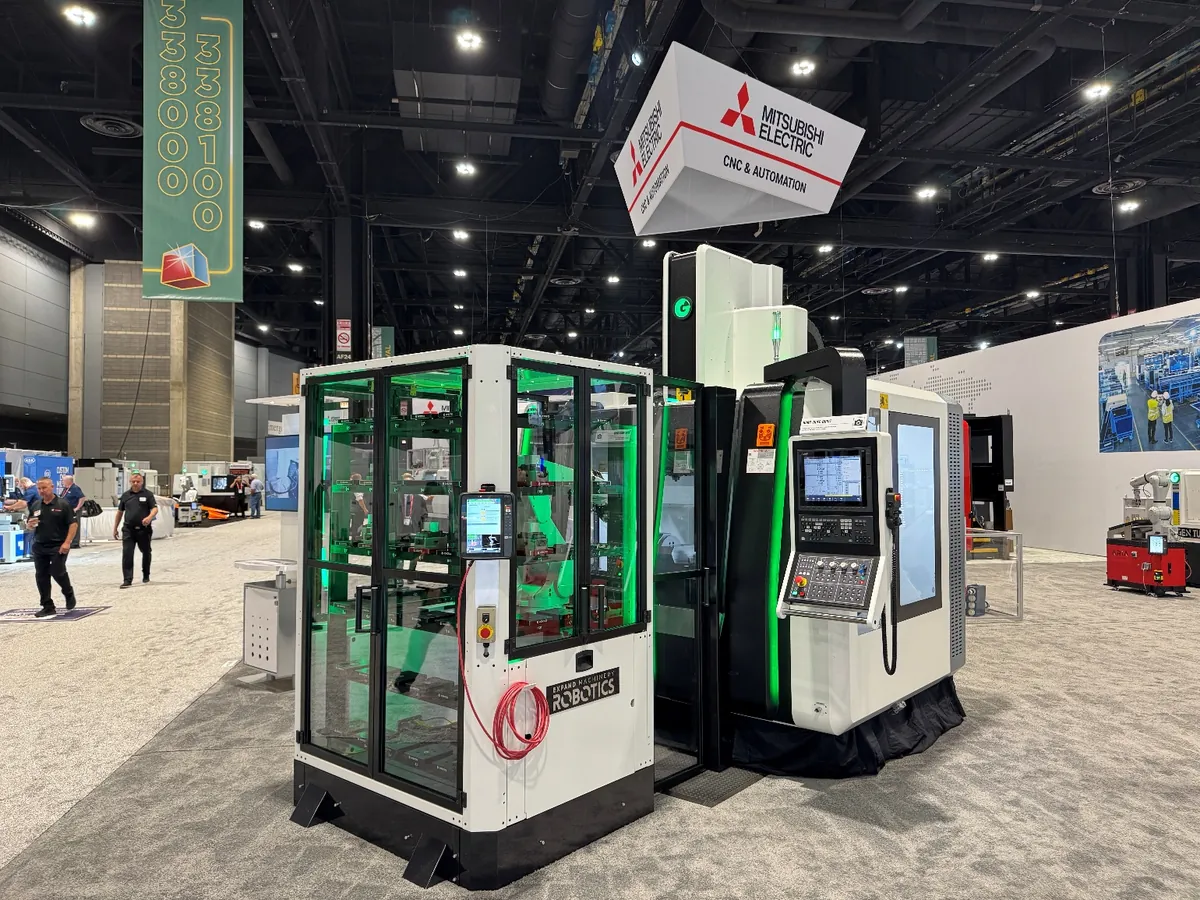

A 4+1 machining center with glass scales on all five axes, and an Expand Robotics cell with a Mitsubishi robot that loads it, with 50 pallet capacity (15 included). One package, set up together at the factory.
$399,990
Delivered and installed
Delivered to your rigger of choice, fully installed, with initial training.
4+1positioning, five sides in one clamping
5 axesglass scale feedback on all of them
20 kgMitsubishi RV-series robot
50pallet capacity (15 included)
What’s in the package
The machine and the cell, sold as one
GEN MILL 5X-12

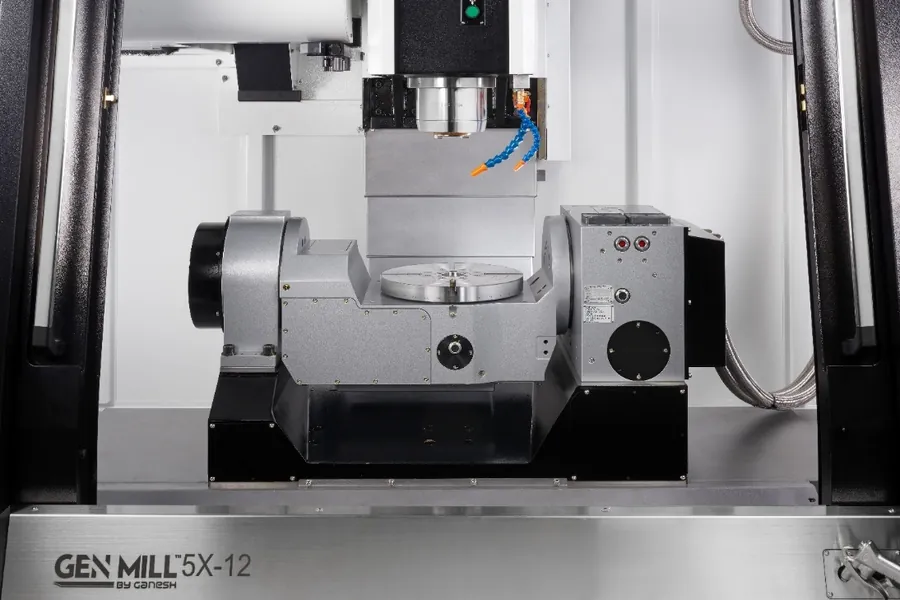

- 4+1 positioning on a built-in Ø12.6″ tilting rotary table, +30° to −111° tilt
- Glass scale feedback on all five axes
- 12,000 RPM inline direct-drive spindle, 25 HP peak, spindle oil cooler
- 40-tool twin-arm tool changer, 2.8 s tool-to-tool, CAT40
- Mitsubishi M830 control, 2,700-block look-ahead
- Renishaw radio probing: RMP400 spindle probe, RMI-Q receiver and RTS tool setter
- 300 psi through-spindle coolant
- SCHUNK NSE zero-point clamping module on the table, with custom adapter
- Air through the table by rotary union, for the automation
- Full enclosure with top covers
- Custom automation screen on the Mitsubishi control

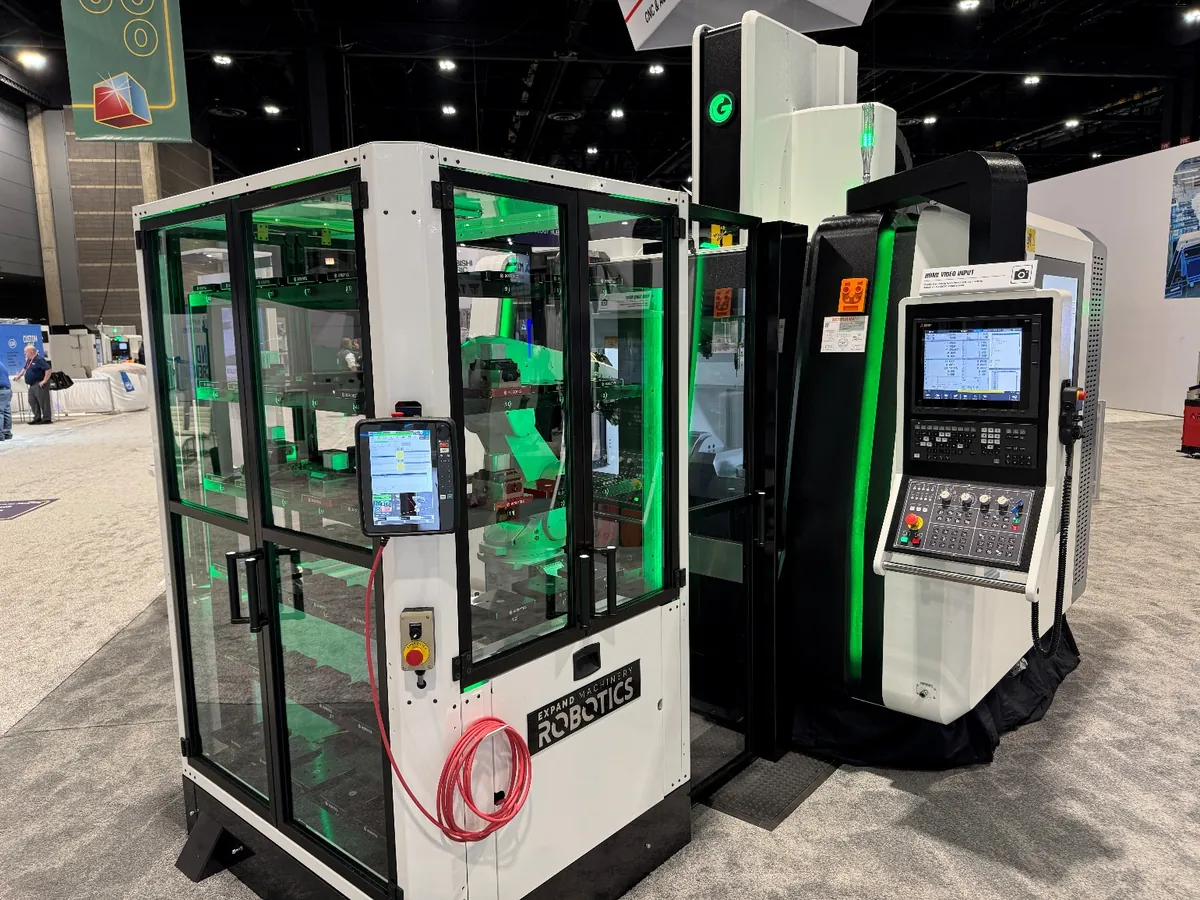

Expand Robotics cell
- Mitsubishi 20 kg RV-series industrial robot
- CR800 robot controller with safety module
- R86TB touchscreen teach pendant and RT ToolBox3 software
- 4′ × 4′ full enclosure with area scanner
- SCHUNK NSR mini 100 gripper module with air blow
- 50 pallet capacity (15 included) — add more as you need them
- Factory setup of the machine and the robot cell together
Specifications
GEN MILL 5X-12
| X × Y travel | 34.64 × 23.62″ | 880 × 600 mm |
|---|---|---|
| Rotary table | Ø12.6″ | Ø320 mm, Ø50 H7 bore, 4 T-slots |
| Table load | 330 lb at 0–10° A | 220 lb at 10–90° A |
| Max part swing | Ø16.3″ | Ø414 mm |
| Rotary feedback | Glass scales, A & C | 10 arc-sec resolution |
| Spindle | 12,000 RPM direct drive | 25 HP peak, 90 ft-lb at 1,500 RPM |
| Accuracy X, Y, Z | ±0.0002″ / 12″ | JIS 6338 |
| Repeatability X, Y, Z | ±0.0001″ / 12″ | JIS 6338 |
| Rapids | 1,417 ipm X, Y | 1,260 ipm Z |
| Tool changer | 40 tools, CAT40 | 2.8 s tool-to-tool |
| Coolant | 97 gal, 300 psi | |
| Power / air | 220 V, 3-phase, 38 kVA | 85 psi at 14 scfm |
| Machine weight | 15,708 lb | 7,120 kg |
| Machine floor space | 115 × 82 × 116″ (W × D × H) | add 48″ left for the conveyor |
GEN MILL 5X-12
Expand Machinery · machine video
Options
Build it up
- 15,000 RPM spindle
- 24,000 RPM HSK-63 integral spindle with ceramic bearings and chiller
- 60-tool twin-arm tool changer
- 1,000 psi through-spindle coolant
- Coolant chiller, mist collector and fine-chip purge
- Additional pallets, up to 50 in the cell
- Additional on-site operation and programming training
Support
Warranty and training
- 1-year machine warranty
- 3-year warranty on the Mitsubishi control, motors and drives
- Full installation and initial training on your floor
- 3-day operation and programming training at Expand’s training center
- Spare parts stocked by Expand in Chatsworth, CA
- Machine and cell from Expand Machinery and Expand Robotics — more on Expand
- Installed and supported by LOMA
Request this package
$399,990, delivered and installed.
Delivered to your rigger of choice, fully installed, with initial training. Tell us about the parts you want it to run and we will come back with a formal quote, lead time and the options that fit. Or call 978·356·2500.
Questions
The 5X-12 package, answered plainly.
What does 4+1 mean on the 5X-12?
The trunnion tilts and rotates to position the part, locks, and the machine cuts with three linear axes. That reaches five sides of a prismatic part in one clamping. Expand also builds the 5X-12 as full five-axis simultaneous.
How long can it run without an operator?
The cell has a 50 pallet capacity (15 included), and you can buy more pallets as you need them. Unattended time depends on your cycle time and how many pallets are loaded.
What does the $399,990 include?
The machine with its accessory package, the Expand Robotics cell with its Mitsubishi robot, 50 pallet capacity (15 included), factory setup of the machine and cell, delivery to your rigger of choice, full installation and initial training, 3-day training at Expand’s training center, a 1-year machine warranty and a 3-year warranty on the Mitsubishi control, motors and drives. Options are extra. Rigging into your building is handled by your rigger.
Price in US dollars. Delivered and installed means delivered to your rigger of choice, fully installed, with initial training; rigging is by your rigger. Specifications from Expand Machinery and subject to change. Pictures can show options.
