Vertical machining centers, 3-axis, 5-axis and bridge.

Ten GEN MILL machines covering a 12.59″ compact 5-axis envelope through to a 63″ three-axis bed and a double-column bridge machine built like a CMM. Glass-scale feedback, roller-bearing linear ways and through-spindle coolant across the range.

The five-axis machines carry glass scales on the rotary axes as well as the linear ones, so position is measured at the table rather than inferred from the servo — which is what holds a tolerance as part height grows.

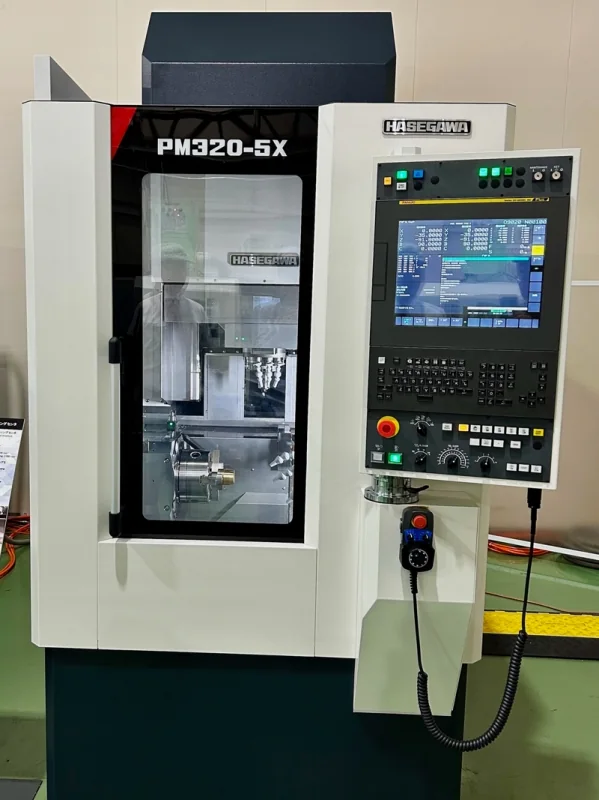

PM320-5XMade in Japan

5-axis super-precision compact VMC, with optional turning

PM320-5X

Hasegawa · PM series builder demo

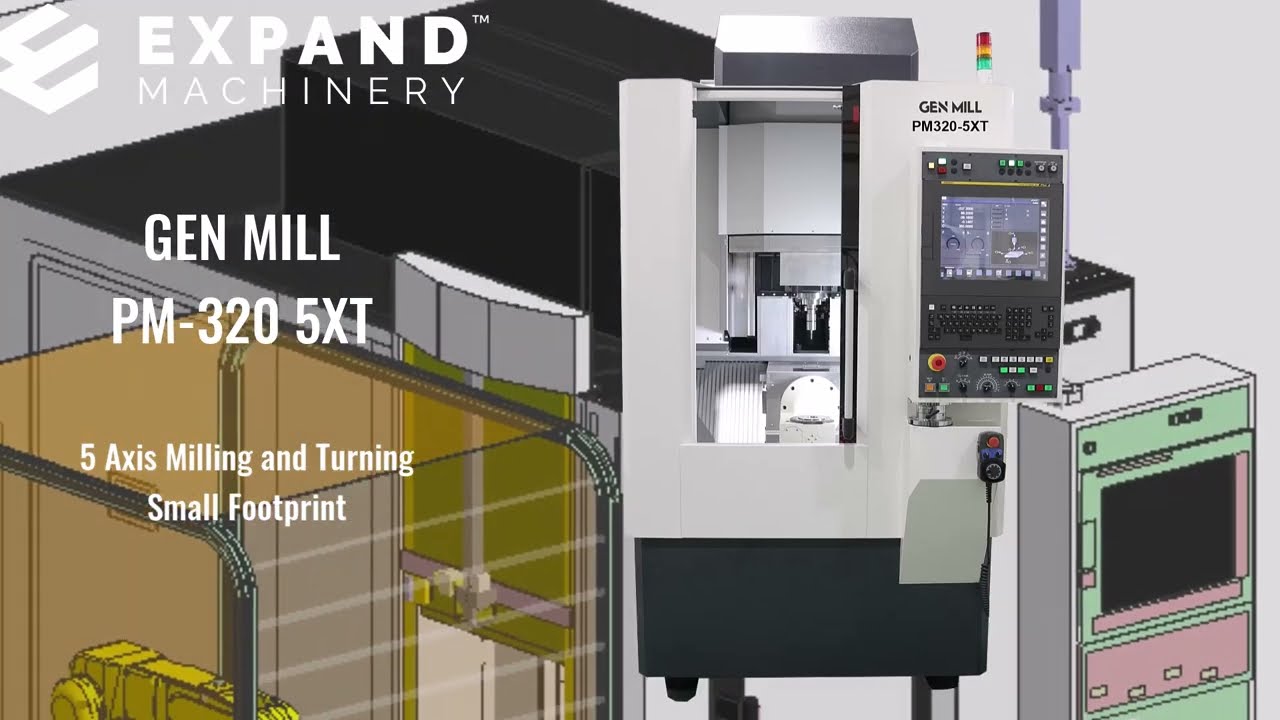

Built in Japan by Hasegawa. A 25,000 RPM HSK-E40 built-in spindle with 45,000 RPM available, a 150 mm trunnion, Fanuc 31i-B5 five-axis simultaneous control, glass scales, and tool and part probing as standard. The 5X-T variant adds 2,000 RPM live turning on the same trunnion, so complex precision parts finish in a single setup.

Travels

12.59 × 13.38 × 14.96″

Spindle

25,000 RPM HSK-E40

Trunnion

Ø5.91″ · 150 mm

ATC

50 tools (64 opt.)

Control

Fanuc 31i-B5

Weight

9,040 lb

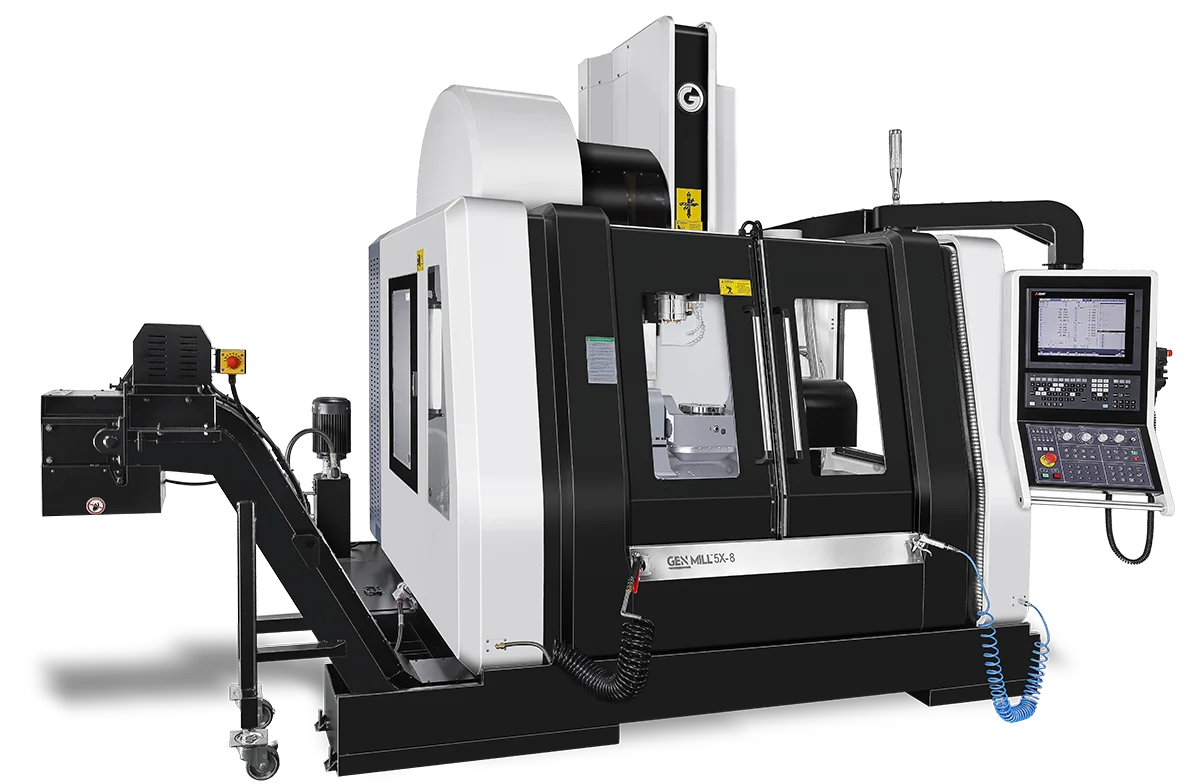

5X-8

5-axis with a built-in 8″ trunnion

GEN MILL 5X-8

Expand Machinery · machine video

The compact five-axis of the range. A 12,000 RPM inline direct-drive Big-Plus spindle with synchronous rigid tapping, a Ø8.27″ hardened and ground trunnion holding 165 lb flat, Heidenhain rotary encoders, and 300 PSI through-spindle coolant with a rotary coupling.

Travels

25.59 × 19.68 × 17.71″

Spindle

12,000 RPM · 20 HP peak

Trunnion

Ø8.27″ · 165 lb

ATC

24 tools

Rapids

1,417 ipm

Weight

12,760 lb

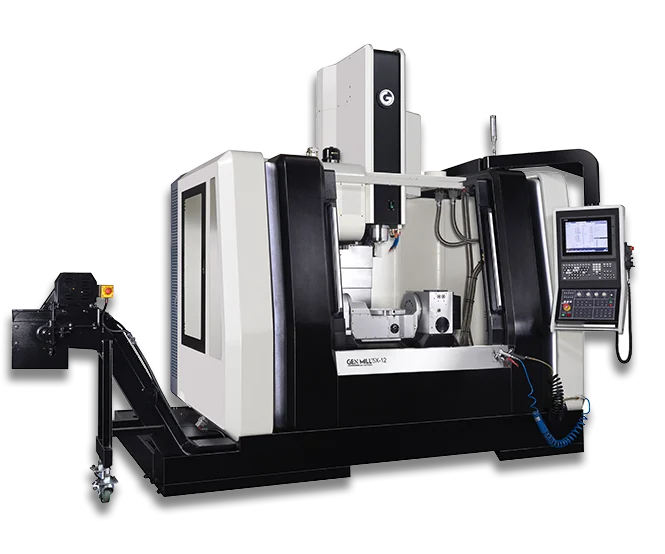

5X-12

The workhorse 5-axis, built-in 12″ trunnion

5X-12

Expand Machinery · machine video

A 12.6″ trunnion holding 330 lb flat, glass scales on all five axes, and roller bearing ways that are roughly twice as rigid as ball ways in the same envelope. A 12,000 RPM Big-Plus spindle at 25 HP peak with a chiller to hold thermal position, running 4+1 or full simultaneous five-axis.

Travels

34.64 × 23.62 × 19.97″

Spindle

12,000 RPM · 25 HP peak

Trunnion

Ø12.6″ · 330 lb

ATC

40 tools

Rapids

1,417 ipm

Weight

15,708 lb

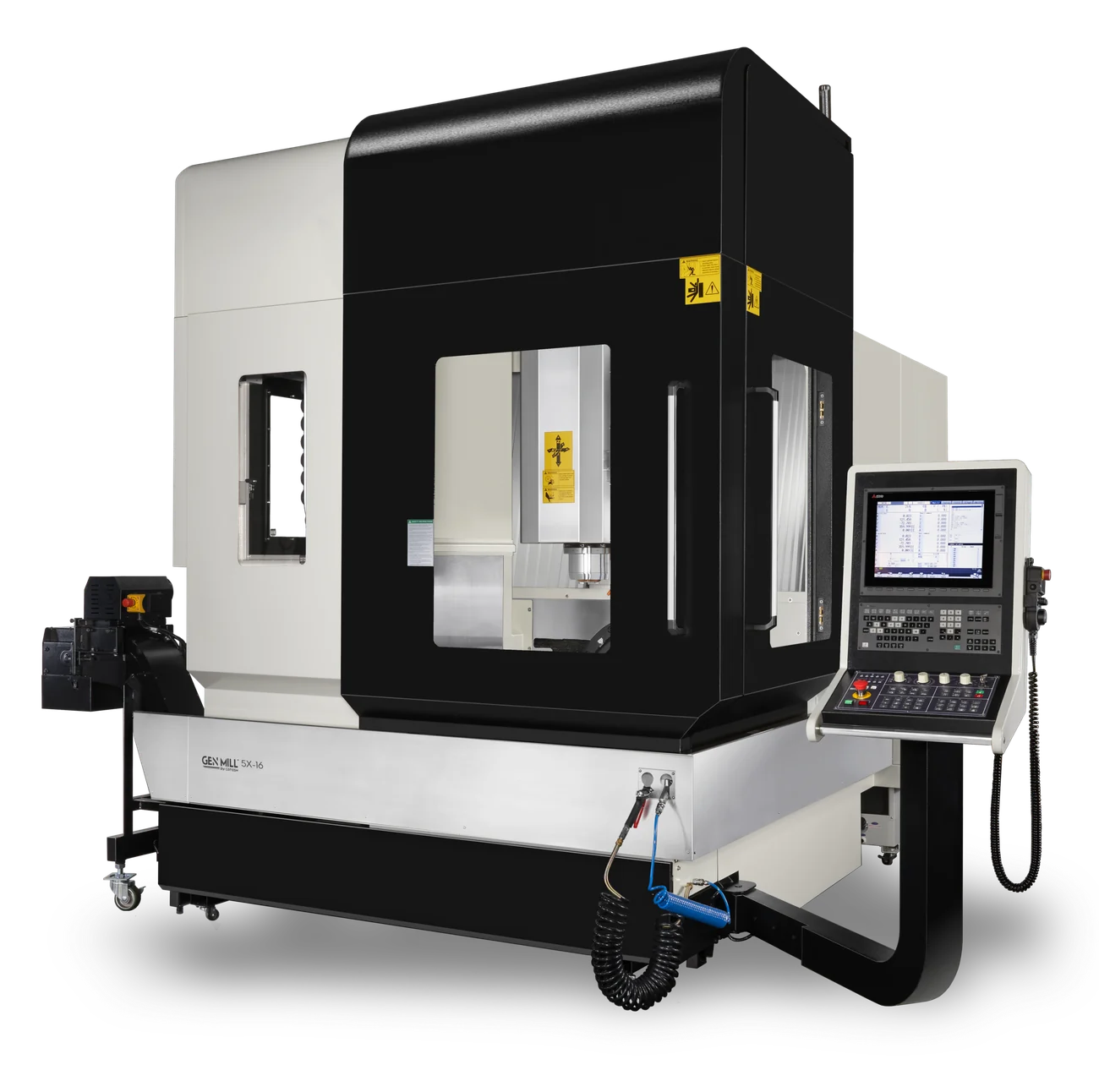

5X-16

High-precision 5-axis with probing and glass scales

GEN MILL 5X-24 shown

Same platform as the 5X-16, larger table

A tighter envelope built for accuracy rather than reach: 15,000 RPM direct-drive spindle, glass scale feedback on all five axes, a 60-tool twin-arm changer and P4 class bearings front and rear. Maximum workpiece Ø430 mm.

Travels

15.75 × 13.78 × 13.78″

Spindle

15,000 RPM direct-drive

Max workpiece

Ø16.9″ × 15″

ATC

60 tools

Rapids

1,417 ipm

Weight

16,534 lb

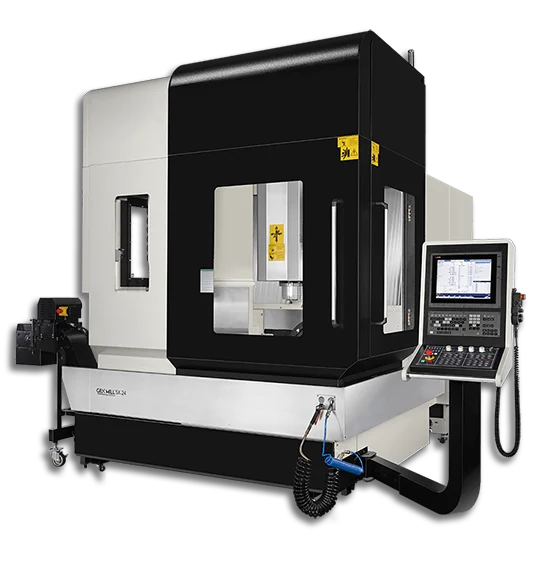

5X-24

Full 5-axis with a Ø25.6″ tilting rotary table

5X-24

Expand Machinery · machine video

The largest trunnion in the five-axis range, carrying parts to Ø20.47″ and 13″ tall. Glass-scale feedback on X, Y, Z and both rotary axes, a 15,000 RPM direct-drive spindle with 20,000 available, roller-bearing linear ways throughout, and sixty tools in a twin-arm changer so a long simultaneous program does not run out of cutters.

Travels

24.41 × 20.47 × 18.11″

Spindle

15,000 RPM (20,000 opt.)

Table

Ø25.6″ tilting rotary

ATC

60 tools

Rapids

1,417 ipm

Weight

21,384 lb

2416 · 3120 · 4024 · 63283-axis platform

One machine, four envelopes — 24″ to 63″ of X travel

GEN MILL 2416

Expand Machinery · machine video

GEN MILL 4024

Expand Machinery · machine video

The four 3-axis GEN MILLs are the same machine built at four sizes. Every one runs a 12,000 RPM inline direct-drive Big-Plus spindle with 15,000 available, a spindle chiller for thermal stability, 300 PSI through-the-tool coolant, a twin-arm high-speed changer at 2.2 to 2.8 seconds tool-to-tool, and 2,700-block look-ahead. Fourth and fifth axis wiring is fitted from the factory, so adding a rotary later is a plug-in rather than a retrofit. What changes across the range is travel, table size and how much spindle power sits behind the cut — so size the machine to the part, and everything else about how it runs stays the same.

**3-axis GEN MILL range**Four models · shared platform
Model	Travels X × Y × Zinches	Tableinches	Loadlb	Powerhp peak	ATCtools	Rapidsipm	Weightlb
2416	24.01 × 15.75 × 17.72″	25.59 × 15.75″	882	15	24+1	1,417	9,923
3120	31.50 × 19.69 × 19.69″	37.40 × 19.68″	1,323	20	30+1	1,417	11,023
4024	40.55 × 23.62 × 25.59″	45.66 × 19.68″	1,763	30	30+1	1,417	15,708
6328	63.00 × 27.56 × 27.56″	68.90 × 27.56″	3,397	35	40+1	944	26,455

CAT#40 taper throughout, BT#40 optional; CAT#50 and BT#50 available on the 6328. The 3120 runs a Mitsubishi M830 control. Videos show the 2416 and the 4024.

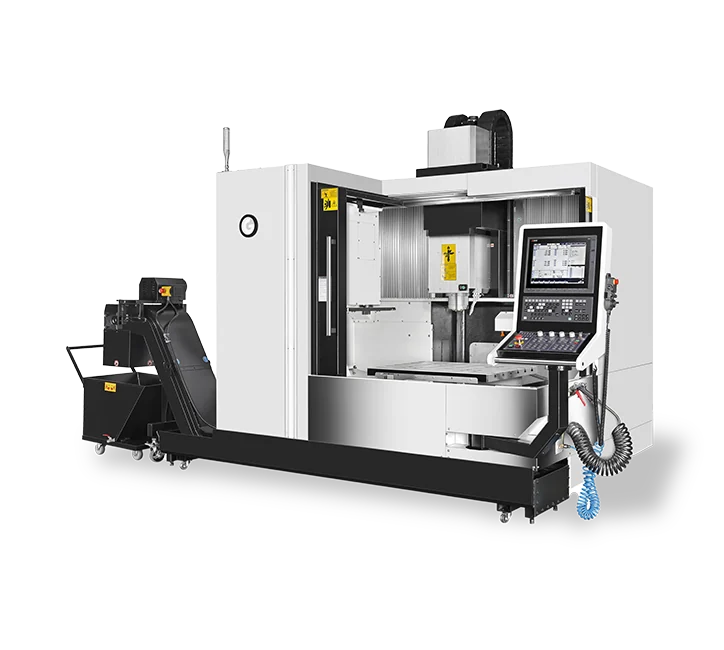

HSD-1000Double column

Bridge-style super-precision VMC, built like a CMM

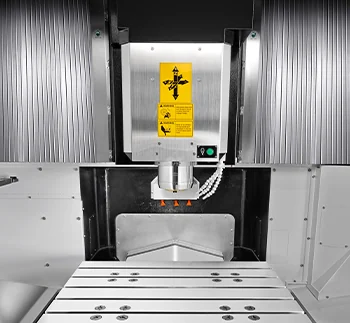

HSD-1000 work area — bridge, spindle and hardened ground table

Heavy double-column bridge construction with a 47.24 × 39.37″ table taking 2,000 lb, a 15,000 RPM dual-contact CAT-40 spindle with chiller, 45 mm roller-bearing linear guideways and optional Heidenhain linear scales resolving to 50 nanometers. Control runs 2,700-block look-ahead at 4,500 blocks per second.

Travels

40.15 × 33.46 × 19.68″

Table

47.24 × 39.37″ · 2,000 lb

Spindle

15,000 RPM dual contact

ATC

48 tools

Scale option

50 nanometer

Weight

28,665 lb

Questions

Worth asking before you buy.

What is the difference between 4+1 and full 5-axis simultaneous?

In 4+1, or 3+2, the rotary axes position the part and lock, then the machine cuts with three linear axes. Full simultaneous means all five axes move together during the cut, which is what impellers, blisks and complex contoured surfaces require. The GEN MILL 5X machines run either way, so you are not paying for simultaneous capability you only sometimes need.

Why do glass scales matter on the rotary axes?

Without scales, the control infers rotary position from the servo motor and gearing, so backlash and thermal growth go unmeasured. With glass scales the position is measured at the table itself. On a 5-axis machine every fraction of a degree of rotary error becomes a dimensional error at the tool, and it compounds with part height, so scales on B and C matter more as parts get taller.

What size machine do I need?

Match X travel to your longest part plus fixturing and tool clearance. The range runs from 12.59 inches on the PM320-5X to 63 inches on the 6328. Table load matters as much as travel on heavy work — 882 lb on the 2416 up to 3,397 lb on the 6328. Send us the part and we will size it.

What taper do these machines use?

CAT#40 throughout, except the PM320-5X which is HSK-E40. BT#40 is optional on all models, CAT#50 and BT#50 on the 6328, and HSK-63 on the 5X-16 and 5X-24. Balanced toolholders to G2.5 are required above 10,000 RPM.

What warranty comes with them?

One year on the machine, and three years on the Mitsubishi control, motors and drives. The PM320-5X uses a Fanuc 31i-B5 control with a two-year control, motor and drive warranty.

Before the first chip

A 5-axis envelope is only as good as what is holding the part.

Buy the machine and you have bought the reach. Mill a dovetail to hold the blank and you give a good part of that reach straight back — in spindle time, in material, and in the collision contour the fixture puts in the way of the tool.

HWR SOLIDStamp form-fit clamping

A stamping station presses a tooth contour into the blank outside the machine. The part clamps by form fit on a 3 mm edge, at low clamping pressure, in a vise with almost no collision contour — so the tool reaches five sides with shorter, stiffer tooling and the spindle never spends a minute cutting a fixture.

See SOLIDStamp on NSIT →

HWR INOFlex® VL compensating 4-jaw chuck

Round, cubic and irregular parts clamped concentric in one chuck, on 160–1200 mm. A weight-optimised body and low overall height leave more of the trunnion’s rated load for the part itself, and centrifugal force compensation holds clamping force at speed.

See INOFlex VL on NSIT →

Tooling, workholding and the crib

Our sister company North Shore Industrial Tool handles what the machine runs on — cutting tools, toolholding, workholding, metrology and a managed inventory program. Same people, same phone number, so the machine arrives with the tooling package already sorted.

What NSIT manages →
